Table and floor paint booths

Paint booths and boxes

designed with dry filtration system – series USB – the booths are equipped with triple filtration system with possibility of extension using active carbon caskets
designed with water screen filtration – series TURBODYNACLEAN – the booths are equipped with water tank for separation system and sedimentation of the paint over-sprays; it operates without any circulation pump and does not require intensive maintenance
booths of both types are suitable for painting of small or large parts using different painting methods
depending on booth size operation can be used by one or two workers
all booth types can be used in continuous paint lines with overhead conveyers

used mainly for painting of large parts
design provides booths with closed ceiling – especially for spraying and drying modes, or booths with open ceiling enabling manipulation with parts by means of cranes
over-spray paint is eliminated on dry filtration system – floor or lateral types, eventually on water screen filtration
depending on available area, the booths are designed as a sheet-metal panel constructions or integrated into the existing building however always equipped with air circulation system with possibility of heat recovery

designed for car body painting of passenger cars or smaller trucks and vans including painting of their parts
designed in a sheet-metal panel constructions or integrated into the existing building with dry filtration system placed in the floor or side panels
equipped with air circulation system which enables operation mode for painting/drying

booths are designed in a modular system with its basic part powder booth KAPR1
painting guns are either electrokinetic or electrostatic types with high voltage generator
workplace usually includes powder baking oven

volatilization tunnels – used for evaporation of residual organic agents after painting before drying off
dryers with transport system – roller conveyers, stick conveyers, floor conveyers etc.

Paint coating box

Paint booth for aircrafts

Paint coating booth for loading platforms of trucks

Paint coating booth for steel frames

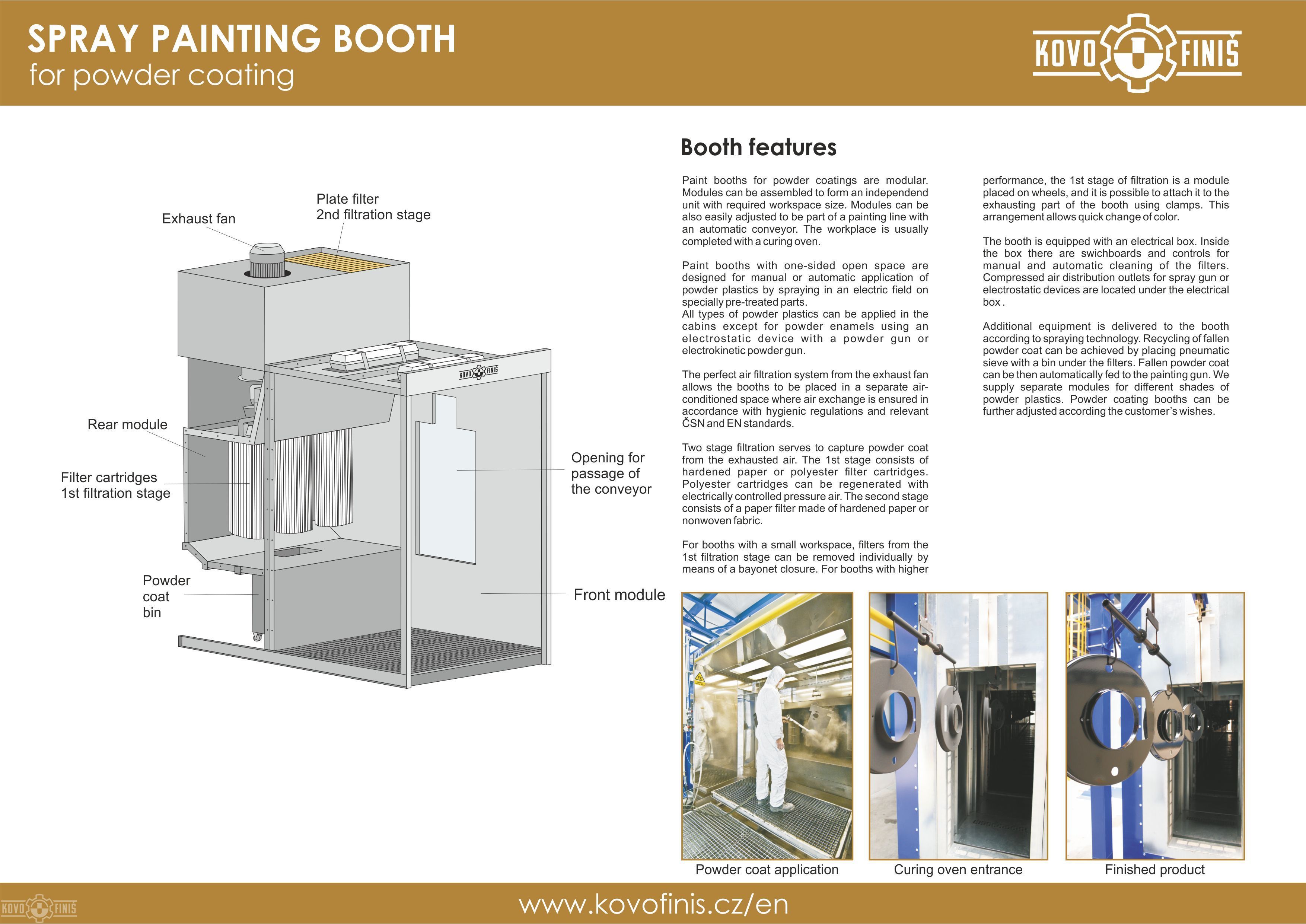

Powder coating booth

TURBODYNACLEAN

Dry separation booth
