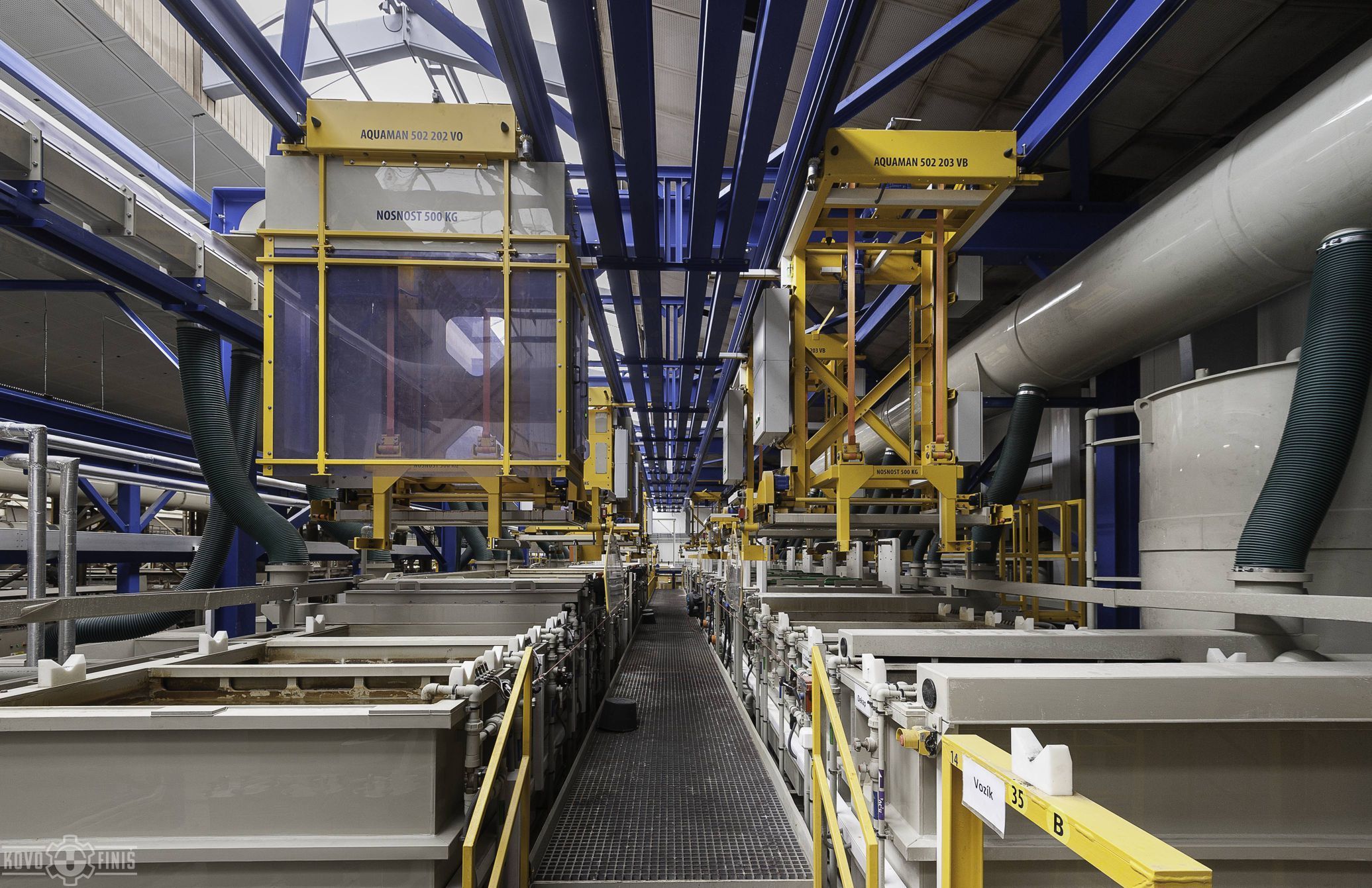

Fully automatic 3-row line for Zn-Ni electroplating in barrels with final treatment in centrifuge baskets

Line perform.:

- for 4μm cycle time 5,5 min (10,9 batches/hour for average batch 120 kg - 1308 kg/hour)
- for 8μm cycle time 6 min (10 batches/hour for average batch 120 kg - 1200 kg/hour)

- tanks dimmensions: 1600 x 1000 x 950/1000 mm
- Zn-Ni tanks: 1600 x 800 x 950/1000 mm
- number of Zn-Ni tanks 15 workplaces (3x5 workplaces)
- batch: average 120 kg/barrel
- maximal 150 kg/barrel
- automated loading of barrels
- automatic tank covers
- diaphragm anodic boxes with anolytic circuit

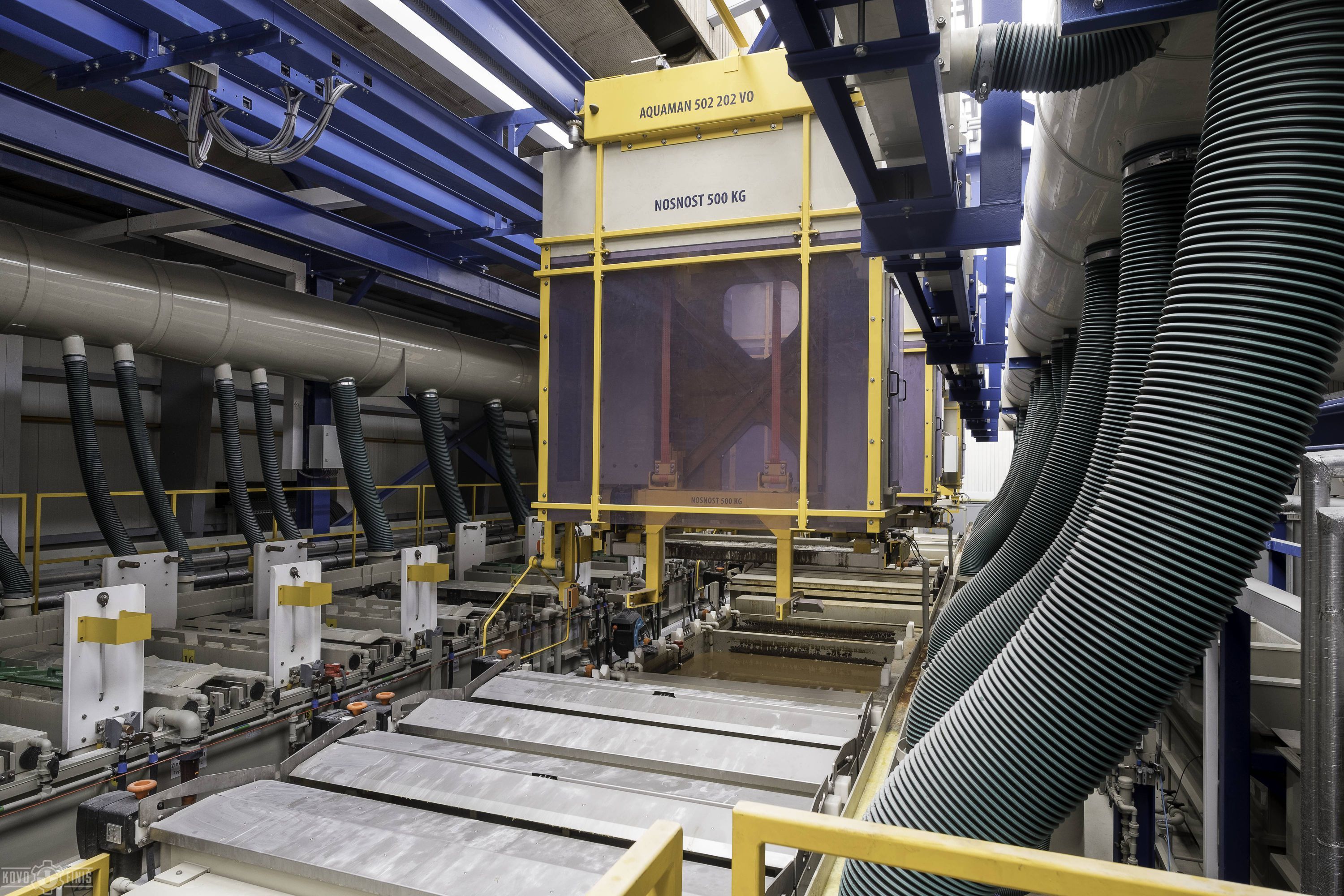

- overhead conveyors with exhausted booths, maximal load 400 kg
- final treatment is done within centrifuge basket
- specialy designed conveyor with rotation and tiltable axis
- freezing out of Zn-Ni waste compounds
